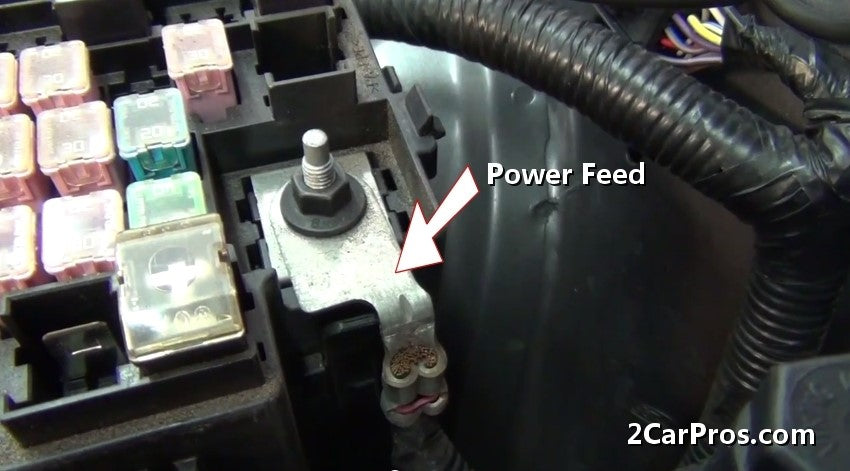

Car Fuse Boxes Explained: Protecting Your Vehicle’s Electrical System

A modern vehicle depends on far more than its engine and battery. Power windows, ADAS sensors, infotainment screens, electric cooling fans, fuel delivery systems, seat motors, control modules, and charging systems all rely on carefully managed electrical distribution. That is why the fuse box matters so much: it is not a minor convenience component, but one of the key safety layers between normal operation and an overloaded or damaged circuit. The stakes are real. NFPA says U.S. fire departments responded to an estimated annual average of 215,096 vehicle fires in 2018–2022, causing 643 civilian deaths, 1,532 injuries and $2.8 billion in direct property damage. NFPA also notes that highway vehicle fires linked to mechanical or electrical failure tend to increase during commuting hours and peak between 2 p.m. and 6 p.m.

Fuse protection is becoming more important, not less. The International Energy Agency says global electric car sales topped 17 million in 2024, up more than 25% year over year, and more than 20% of all new cars sold worldwide were electric. At the same time, power-distribution suppliers such as Bosch and Infineon describe a clear industry shift toward more centralized and zonal electrical architectures, where power management has to support more software-controlled loads with tighter safety expectations. In other words, the humble fuse box now sits inside a much more complex electrical ecosystem than it did a decade ago.

What a car fuse box actually does

At its core, a fuse is an intentionally weak link in the circuit. Littelfuse describes automotive fuses as current-sensitive devices designed to melt under overcurrent conditions and safely interrupt current flow. That matters because “overcurrent” includes both overloads and short circuits. An overload can happen when a device draws more current than the wiring or equipment is rated to carry; a short circuit happens when electricity finds an unintended path to ground and current rises rapidly enough to overheat insulation or damage components.

The fuse box is the organized home for that protection. In older vehicles, people often think of it as a plastic panel full of colored blade fuses. In modern vehicles, it is better understood as part of the low-voltage power-distribution system. Infineon explains that the system typically has a primary power distribution unit connected to the battery or DC-DC converter, plus one or more secondary power distribution units that distribute energy to the vehicle’s loads. That is why a fuse box is not just a “holder” for fuses; it is a control point for how electrical energy is divided, protected, and delivered across the vehicle.

Why vehicles use more than one fuse box

Current owner manuals show how this plays out in real vehicles. Ford’s manuals describe a pre-fuse box attached to the positive battery post in the engine compartment for several high-current fuses, an engine-compartment fuse box for the vehicle’s main electrical systems, and a passenger-compartment fuse box below the glove box. Some models also add a luggage-compartment fuse box. That multi-box layout is not overengineering; it reduces cable runs, separates high-current and lower-current functions, and makes service more manageable.

In practical terms, the under-hood area usually handles heavier electrical duties, while the cabin fuse box typically supports lower-current convenience and control circuits. A blown fuse for a radio, interior electronics, or a power socket is very different from a high-current protection issue near the battery. That distinction matters because high-current protection devices are often tied directly to major vehicle systems and are treated more cautiously by manufacturers. Ford explicitly says replacement of certain high-current pre-fuses should be left to an authorized dealer.

How fuse protection works in real driving conditions

One expert detail that many drivers miss is that fuse protection is not just about the amp number printed on top. Littelfuse explains that fuses have different time-current characteristics, meaning they do not all open at the same speed for the same overcurrent event. Some automotive loads create normal startup surges, so fuse designs intentionally include time delay. For example, a high-current motor circuit may need a fuse that tolerates inrush current for a brief moment without nuisance-blowing, while still opening quickly during a true fault.

That is also why different fuse families exist. Littelfuse’s current automotive catalog includes blade fuses, cartridge fuses, cable fuses, bolt-down fuses, and high-voltage fuses. Blade fuses remain standard for many 12-volt and 58-volt applications, while bolt-down and high-voltage fuses are used where current levels and protection demands are much higher. In EVs and hybrids, Littelfuse notes that high-voltage fuses are used to protect circuits, batteries, and battery chargers.

The overlooked point: fuse boxes protect wiring, not just components

Many people assume a fuse exists only to save the part at the end of the circuit. In reality, proper fuse selection is heavily tied to wire protection. Littelfuse states that fuse and wire selection must be standardized so the fuse always protects wire insulation from damage under overload and short-circuit conditions. That is the real reason replacing a blown fuse with a higher-rated one is such a bad idea: it can undermine the protection strategy the harness was designed around.

Another overlooked issue is connection quality. Littelfuse notes that high voltage drop across the fuse-terminal interface adds thermal loading and can shift fuse performance. In plain English, the fuse element itself may not be the only problem; poor contact, looseness, contamination, or heat at the terminal connection can also create trouble. That is one reason experienced technicians do not stop at “the fuse was blown.” They also inspect the socket, terminal tension, and signs of heat damage.

Why fuse boxes matter even more in 2024–2026 vehicles

The growth of electrified vehicles is one obvious reason. IEA says electric car sales exceeded 17 million in 2024, and the global electric-car fleet reached almost 58 million by the end of that year. Even though EVs have high-voltage battery systems, they still depend on low-voltage power distribution for many control, safety, and accessory functions. Hyundai’s 2024 ICCU recall is a good example: NHTSA documents that an open ICCU fuse could prevent charging of the 12-volt battery, eventually reducing motive power over time as the auxiliary system discharged.

The second reason is architecture change. Bosch says future vehicle E/E systems are moving from domain-specific layouts to vehicle-centralized, zone-oriented architectures. Infineon describes this as “generation 3” power distribution, where secondary power distribution is integrated into the zone control unit and increasingly built on semiconductors. It also notes that the rising number of comfort and ADAS functions has sharply increased the number of electrical loads in recent years, making power-distribution design more complex.

That shift is already influencing the kinds of protection hardware used. Infineon’s automotive eFuse pages describe solid-state, resettable electronic fuses that supervise current, voltage, and temperature, isolate faults quickly and support diagnostics for zonal, software-defined vehicle architectures. Infineon also says some automotive power-distribution designs are preparing for an additional 48-volt layer, because a 12-volt system alone can limit available power for future vehicle loads. So the future of the fuse box is not the disappearance of protection, but smarter and more distributed protection.\

What recent recalls say about real world fuse risk

Recent recalls show that fuse protection is only as good as the specification, manufacturing quality, and surrounding electrical design. In a 2024 NHTSA filing, Mercedes Benz said certain 2023–2024 models had some 80A fuses that might not meet production requirements. NHTSA’s report says contact interruption or increased triggering resistance could make connected systems inoperable, potentially causing loss of propulsion without warning, impairing restraint functions or the instrument cluster and that a fire risk could not be ruled out.

Hyundai’s ICCU recall shows the same lesson from a different angle. NHTSA says certain electrical load conditions could cause a MOSFET failure that results in an open ICCU fuse. The result was an inability to charge the 12-volt battery, followed by a fail-safe mode and eventual loss of motive power if the auxiliary battery fully discharged. This is a useful reminder that even in highly computerized EVs, low-voltage protection remains mission-critical.

What owners should do when a fuse blows

A safe first response is straightforward:

• Switch off the ignition and electrical equipment before replacing a fuse. Consult the owner’s manual so you are checking the correct box and the correct circuit.

• Replace the blown fuse only with the same type and rating. Ford’s manuals say this directly, and fuse manufacturers tie fuse selection to wire and equipment protection.

• If the replacement fuse blows again, stop treating it like a simple consumable. A repeated failure usually points to overload, a short or a component fault somewhere in the circuit.

• Leave pre fuse, high current and EV or hybrid high voltage protection work to trained technicians. Current owner manuals and supplier documentation make clear these circuits are in a different risk category.

Common mistakes that turn a small electrical issue into a bigger repair

The first mistake is upsizing a fuse because the correct one keeps blowing. That may get the accessory working for a moment, but it works against the fuse’s job as the intentional weak link. The second mistake is ignoring heat marks, melted plastic, or loose terminals around the fuse cavity. As Littelfuse explains, connection quality affects thermal loading and fuse performance, so the socket itself can be part of the failure. The third mistake is assuming every electrical fault is caused by the fuse box. Often the fuse is simply reporting another problem downstream, such as a failing motor a pinched wire or moisture in a connector.

Conclusion

Car fuse boxes deserve more respect than they usually get. They are the frontline protection layer for the wiring harness, control modules, accessories, and in many cases major vehicle systems. NFPA’s fire data shows electrical and mechanical failures remain a real safety issue, while IEA and major automotive suppliers show vehicles are becoming more electrified, more software-defined, and more dependent on sophisticated power distribution. The result is simple: fuse protection is becoming more critical, more specialized, and more connected to total vehicle safety.

The future outlook is not a world without fuse boxes. It is a world where traditional fuses, high-current pre-fuses, high-voltage protection and smart eFuses all coexist inside more advanced electrical architectures. For vehicle owners, the best takeaway is practical: treat blown fuses as warnings not annoyances; replace them correctly and respect the difference between a small cabin circuit issue and a major power distribution fault. That approach protects the car, the repair budget and most importantly, safety.

FAQs

What does a car fuse box do?

A car fuse box protects electrical circuits by stopping excess current before it damages wiring or parts.

Why are fuses important in a vehicle?

Fuses help prevent electrical failures, overheating and possible fire risks in the system.

Where is the fuse box usually located?

Most vehicles have one fuse box under the dashboard and another in the engine compartment.

What happens when a fuse blows?

The circuit stops working, which may affect lights, wipers, radio, windows or other features.

Can I replace a blown fuse myself?

Yes, if you use the correct fuse type and the exact same amperage rating.

Is it safe to use a higher-rated fuse?

No, using a higher-rated fuse can damage wiring and create a serious safety risk.

Why does a fuse keep blowing again and again?

This usually means there is a deeper electrical problem such as a short circuit or faulty component.

Do modern cars still use fuse boxes?

Yes, modern vehicles still use fuse protection, even though their electrical systems are more advanced.

Are fuse boxes important in electric vehicles too?

Yes, electric vehicles also rely on fuse protection for low-voltage and high voltage systems.

When should a mechanic check the fuse box?

A mechanic should inspect it when fuses blow repeatedly, systems fail without warning or there are signs of heat damage.
